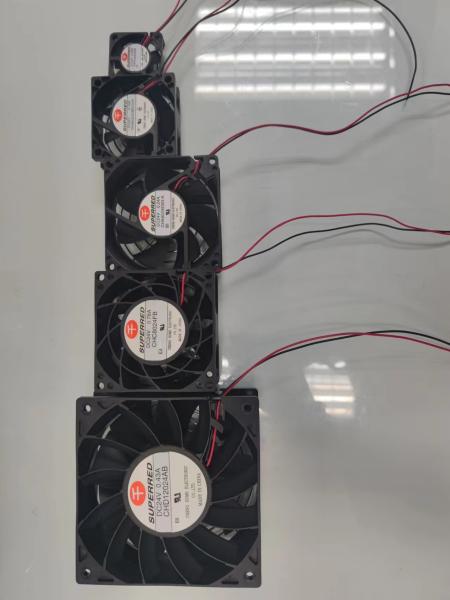

OEM Waterproof Cooling Fan IP65 IP68 Plastic Construction 7 Blade

Brand Name : Cheng Home

Model Number : B8012-XX

Certification : UL TUV

Place of Origin : China

MOQ : 2000 pcs

Price : USD1.00-8.00 per piece

Payment Terms : T/T

Supply Ability : 200-400K pieces per month

Delivery Time : 4-6 weeks

Packaging Details : cartons on pallets

Feature : easy to operate

Samples : available

Option : signal output

Bearing : ball bearing or sleeve bearing

name : DC Brushless Fan

voltage : 12v

Contact Now

OEM Waterproof Cooling FanWith Waterproof IP65 IP68 Plastic Construction 7 Blade Fan​

Our service tenet is:
1. Efficient communication, no matter pre-sales or after-sales, we can reply to customers' information in a timely manner. Understand and solve customer problems in a timely manner.
2. High quality, we believe that high-quality quality is the basic condition for long-term cooperation.
3. Reasonable price, reasonable price allows customers to remain competitive in their market. Welcome to send us an inquiry, and we will reply to your information in time.
4. Delivery on time, abide by the promise, all orders will be delivered in time in accordance with the contract delivery date.
Size
size from 15*15*04mm to 200*200*60mm
Voltage
5V, 12V, 24V, 36V, 48V according to customer's requirement
Protection
Up to IP 68
Operating Voltage
10.8~13.2V
Warranty
1 Year
Life
50,000 hrs
Lead time
7~10 Days
Termination
UL Leadwires or Customerized Terminal
Insulation Resistance
Min 10 megohm at 250 VDC between terminal(+)and housing
Dielectric Strength
Applied AC 500 V for one minute or AC 600 V for 2 Seconds between housing and terminal (+)
Bearing
Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Temperature
-10℃~+70℃(Operation), -40℃~+80℃(Storage)
Features
High airflow, Low noise, Long life, Low Power-consumption
Functions
PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)

Features:

80x80x20 mm

0.64~1.07 m3/min

Material

Frame Plastic PBT 94V0

lmpeller Platic PBT 94V0

Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007

Option Signal output

Bearing:Ball bearing or Sleeve bearing

OEM Waterproof Cooling Fan IP65 IP68 Plastic Construction 7 Blade

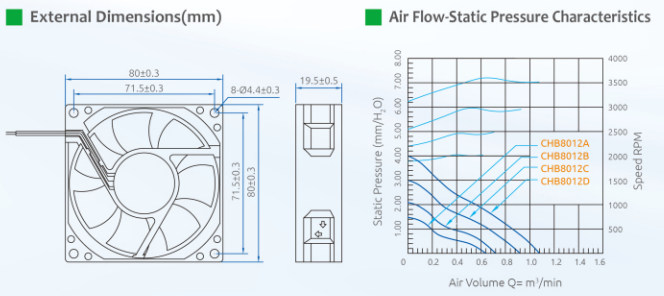

Specification:

Model Rated Voyage (DCV) Operating Voltage (DCV) Rated input (W) Rated Current (A) Operating Temperature (°. Storage Temperature | (°C) Speed (RPM) Max. Air Flow (CFM) Max. Aire Pressure (mmHjO) Noise (DB) Bearing Type Weight (g)
CHB8012A 12 6-13.8 1.08 0.09 -10-70 -40-70 2100 22.4 1.52 25 B/S 62
CHB8012B 12 6-13.8 1.44 0.12 -10-70 -40-70 2500 26.9 2.1 29 S/SB/B 62
CHB8012C 12 6-13.8 2.04 0.17 -10-70 -40-70 3000 32.5 3.02 34 B/S 62
CHB8012D 12 6-13.8 3.6 0.3 -10-70 -40-70 3600 37.7 4.02 39 S/B 62
